Home  >  Exploded Diagrams  >  Exploded Diagrams  >  Filters  >  30-150-W014

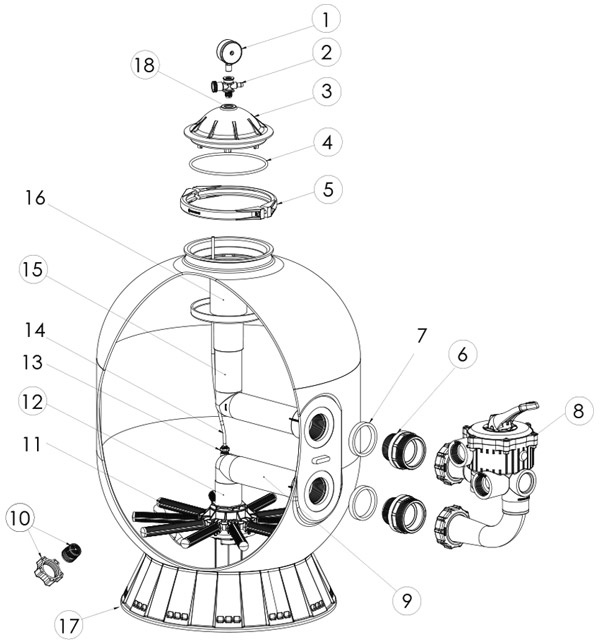

Hayward Pro Series Sand Filter, S244S/S244SV/S310S, 2024+

Product Description  ·  Parts  ·  Complete Filter
Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View Click to View

Parts

Key Horizon # Description Qty
Key 1 Horizon # 17-150-1380 Description Pressure Gauge, Hayward, 1/4"mpt, 0-60psi, Bottom Mount Price Qty RecItem View recommended items
Key 2 Horizon # 17-150-1382 Description Air Relief Assembly, Hayward Super Star-Clear/Micro-Clear Price Qty RecItem View recommended items
Key 3 Horizon # 31-150-1430 Description Tank Lid, Hayward S210S/S311SX Price Qty RecItem View recommended items
Key 4 Horizon # 35-150-3571 Description O-Ring, Hayward Max-Flo SP2700X, Trap Body, O-263 Price Qty RecItem View recommended items
Key 4 Horizon # 90-423-5364 Description O-Ring, 6-3/4" ID, 3/16" Cross Section, Generic Price Qty RecItem View recommended items
Key 5 Horizon # 31-150-1240 Description Valve Clamp, Hayward S140T/S164T/S180T/S210S/S310T Price Qty RecItem View recommended items
Key 5 Horizon # 31-150-1322 Description Clamp Ring, Hayward S310S/S311SX/S311SXV/S360SX Price Qty RecItem View recommended items
Key 6 Horizon # 31-150-1391 Description Bulkhead, Hayward S311/S360/S244, After 1996 Price Qty RecItem View recommended items
Key 8 Horizon # 26-150-1740 Description Multiport Valve, Hayward SP0710X62, 1-1/2", 6 Pos, w/Gauge Price Qty RecItem View recommended items
Key 8 Horizon # 26-150-1744 Description MPV, Hayward Pro Series Sand Filter,2", SM, 6 Pos, w/ Gauge Price Qty RecItem View recommended items
Key 9 Horizon # 31-150-2456 Description Bottom Elbow Assy, Hayward S244S, w/ Air Tube, 2024+ Price Qty RecItem View recommended items
Key 9 Horizon # 31-150-2459 Description Bottom Elbow Assy, Hayward S310S, w/ Air Tube, 2024+ Price Qty RecItem
Key 10 Horizon # 31-150-1379 Description Drain Cap, Hayward Pro Series, with Gasket, After 2006 Price Qty RecItem View recommended items
Key 11 Horizon # 31-150-2440 Description Lateral, 10 Pack, Hayward S180T/S200/S210S, Ball Pivot Price Qty RecItem
Key 11 Horizon # 31-150-2441 Description Lateral, 10pk,Hayward S180T/S210S/S220T/S240/S270T/,BallPiv Price Qty RecItem View recommended items
Key 11 Horizon # 31-150-2443 Description Lateral, 10 Pack, Hayward S310S/S310T/S360T, Ball Pivot Price Qty RecItem View recommended items
Key 12 Horizon # 31-150-2464 Description Lateral Assy, Hayward Pro Series S244S, w/ Standpipe,2024+ Price Qty RecItem View recommended items
Key 12 Horizon # 31-150-2466 Description Lateral Assy, Hayward Pro Series S310S, w/ Standpipe,2024+ Price Qty RecItem View recommended items
Key 13 Horizon # 31-150-2488 Description Locknut, Hayward S244S/S310S, For Air Tube Price Qty RecItem View recommended items
Key 14 Horizon # 31-150-2484 Description Air Relief Tube, Hayward S244S, w/ Locknut, After 07/2024 Price Qty RecItem View recommended items
Key 14 Horizon # 31-150-2486 Description Air Relief Tube, Hayward S310S, w/ Locknut, After 07/2024 Price Qty RecItem View recommended items
Key 15 Horizon # 31-150-2444 Description Top Elbow Assy, Hayward S244S, w/ Bottom Diffuser, 2024+ Price Qty RecItem
Key 15 Horizon # 31-150-2458 Description Top Elbow Assy, Hayward S310S, w/ Bottom Diffuser, 2024+ Price Qty RecItem
Key 17 Horizon # 31-150-1130 Description Tank Base, Hayward S160T/S180T/S210S/S310T/S220/S245T Price Qty RecItem View recommended items
Key 17 Horizon # 31-150-1380 Description Tank Stand, Hayward S310S/S310T/S311SX, After 1992 Price Qty RecItem
Key 18 Horizon # 17-150-1386 Description O-Ring, Hayward StarClear/MicroClear, Air Relief, O-27 Price Qty RecItem View recommended items
Key 18 Horizon # 90-423-7114 Description O-Ring, 5/8" ID, 3/32" Cross Section, Generic Price Qty RecItem View recommended items

Complete Filter

Key Horizon # Description Qty
Key Horizon # _S244SLV Description 24 In Sand Filter -Side Mount/Less Valve- Price Qty RecItem View recommended items
Key Horizon # 30-150-1000 Description Sand Filter Complete, Hayward Pro Series,30",Sd Mnt, No Vlv Price Qty RecItem View recommended items
